BOS0614 Piezo Driver

Four-Channel 60V Piezo Haptic Driver with Integrated Sensing
Order Now Request Datasheet


  • Four-Channel 60 V Low Power Piezo Driver
    • Drives up to four actuators simultaneously
    • Energy Recovery

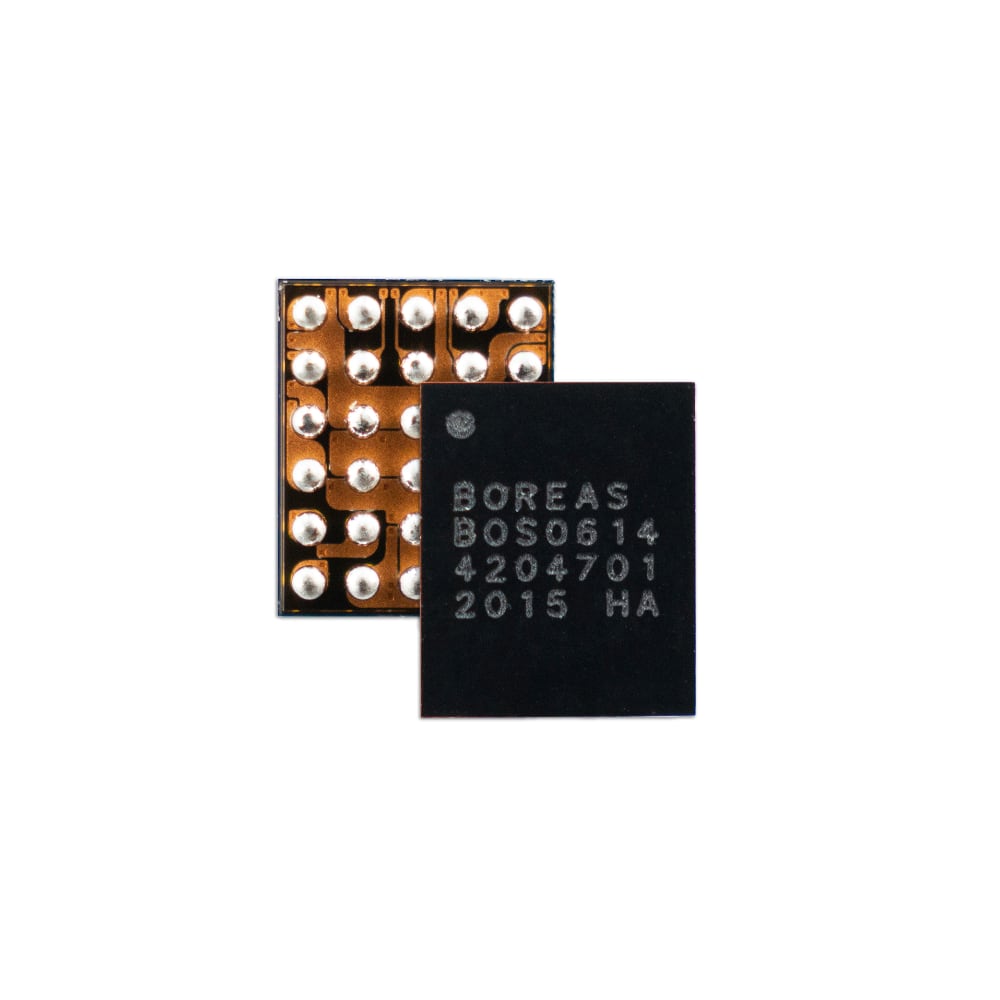

    • Small Package - WLCSP 2.1x2.5x0.5 mm
  • Advanced Piezo Sensing Interface
    • 10 kSps Sample Rate
    • 100 μs Detection Latency
    • Zero Power Sensing for Wake-up
    • Automatic Handling of Customized Press and Release Haptic Feedback
    • 220 μV Force Sensing Resolution
  • Integrated Digital Front End with I3C/I2C
    • 1024 Samples FIFO
    • 2 kB RAM Waveform Memory
    • Waveform Synthesizer (WFS)
    • 1.2 V to 1.8 V Digital I/O Supply
    • State Retention in SLEEP Mode
  • Four GPIOs
    • Open-Drain / Push-Pull
    • Mechanical Button Replacement
    • External Trigger Inputs
  • Fast Start Up Time
  • Wide Supply Voltage Range, 3 to 5.5 V
CapDrive Technology
BOS0614 Piezo Driver
BOS0614 Piezo Driver

Product Description

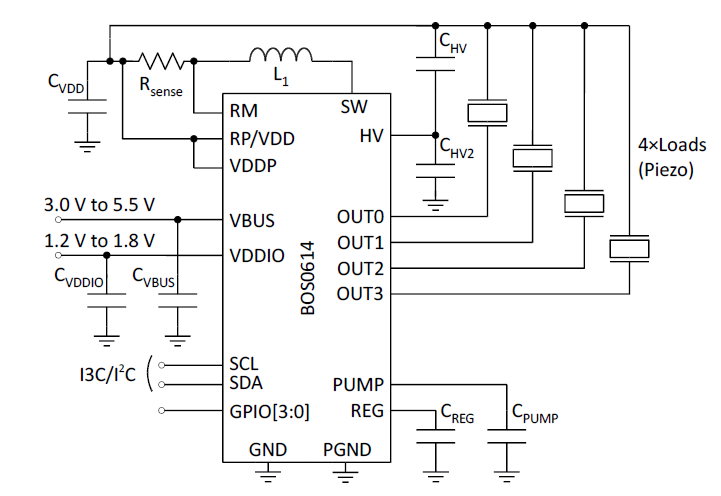

The BOS0614 is a multi-channel piezo haptic driver based on Boréas’ patented CapDriveTM technology. It can drive up to four piezo actuators simultaneously at 60 V. Its Zero Power Sensing (ZPS) capabilities enables the replacement of mechanical buttons in many applications.

The internal 10 kSps sensing interface allows the programming of custom press and release haptic feedback on each channel. When detection conditions are met, the BOS0614 can automatically play the programmed haptic feedback and send a notification via four GPIOs within 100 μs. The active-low open-drain configuration of the outputs enables generating signals identical to mechanical buttons for easy integration in a legacy system.

The four GPIOs can be used as an external trigger and connected directly to the outputs of a touch controller to achieve low latency haptic feedback.

Data and configuration can be communicated easily to the BOS0614 through its two wire MIPI I3C interface. MIPI I3C is backward compatible with I2C for easy integration in most systems. A flexible deep FIFO interface enables the continuous streaming of the digital waveform data for playback or to transmit burst data for more bandwidth efficiency. The interface also integrates a waveform synthesizer and 2 kB RAM waveform memory to generate HD haptic waveforms with minimum communication bandwidth enabling two waveform generation modes: RAM Playback and RAM Synthesis.

Various safety systems protect the BOS0614 from damage in case of a fault.

Parametric Specifications

Description BOS0614
Supply Voltage Min 3.0 V
Supply Voltage Max 5.5 V
I/O Supply Voltage Min 1.2 V
I/O Supply Voltage Max 1.8 V
Full-Scale Output Voltage 0 - 60 V
Total Harmonic Distortion + Noise 1 %

BOS0614 Technical Documentation

Document Name Type Size Release Date
BOS0614 - Product Brief (English) PDF 242 KB 2022-06-07

Design & Development

Name Image Type Buy Now
BOS0614-KIT Dev-Kit Evaluation Board Buy Now

Quality & Environment

Document Name Type Size Release Date
Boréas Technologies RoHS Statement PDFPDF 132 KB 2022-04-07

Order BOS0614

Regular price $5.70 USD - Sample Pricing
Shipping calculated at checkout.

Product Order: Available Upon Request
