Capture True User Intent with Precision Force Sensing

Designing the right haptic experience for invisible interfaces is often costly and time-consuming. The Solid-State Button Devkit eliminates expensive prototyping cycles, offering a complete exploration platform to test advanced interfaces combining capacitive touch, force sensing, and localized haptics. Answer critical questions and validate your designs before manufacturing.

Build, Test, and Iterate in Days

• Validate Form Factors: Test different integrations using the same bender actuator to prove feasibility by securely mounting this button in any prototype.
• Refine Haptic Feedback: Use the Haptic Studio software to instantly switch between sharp clicks, smooth slides, or buzzing notifications to evaluate and refine effects appealing to users.
• Measure User Intent: Combine captouch with integrated force sensors to understand exactly what the user wants. Barely touching the surface won't activate it—completely eliminating false triggers by ensuring inputs and haptic feedback only register upon a deliberate press.
• Prove Multi-Level Interactions: Leverage precise force data to build and demonstrate multi-level buttons. Trigger different actions and distinct haptic responses based on applied pressure, validating complex UX approaches like dual-action presses or sliders on a single surface.

Designed for Rapid Integration

Unlike generic demos, this kit solves real development challenges for modern solid-state interfaces. It is electrically pre-designed with the BOS1921 Boréas driver and comes with fully functional software algorithms for both captouch and force sensing, making it ready for immediate testing. It features a compact piezo module with professional-grade materials. This allows mechanical engineers to plan actual integration constraints while UX teams refine the interaction design.

Features: What You're Actually Getting

• Freedom to explore form factors:
  • Premium Tactile Experience with Bender-Type Piezo Technology, mountable in prototype.
• Control over the tactile experience:
  • Through Haptic Studio, adjust frequency, amplitude, and waveform shape until you've created haptic feedback that matches your brand's interaction philosophy.
  • Customizable Haptic Profiles ranging from Sharp "Clicks" to "Buzzing" Sensations.
• Answers to integration questions:
  • See how capacitive touch, force sensing, and haptic generation work together in a real package to eliminate false triggers and capture true user intent.
  • Multi-Level Button Capability: Utilize force thresholds to seamlessly design buttons that perform different functions depending on how hard they are pressed.

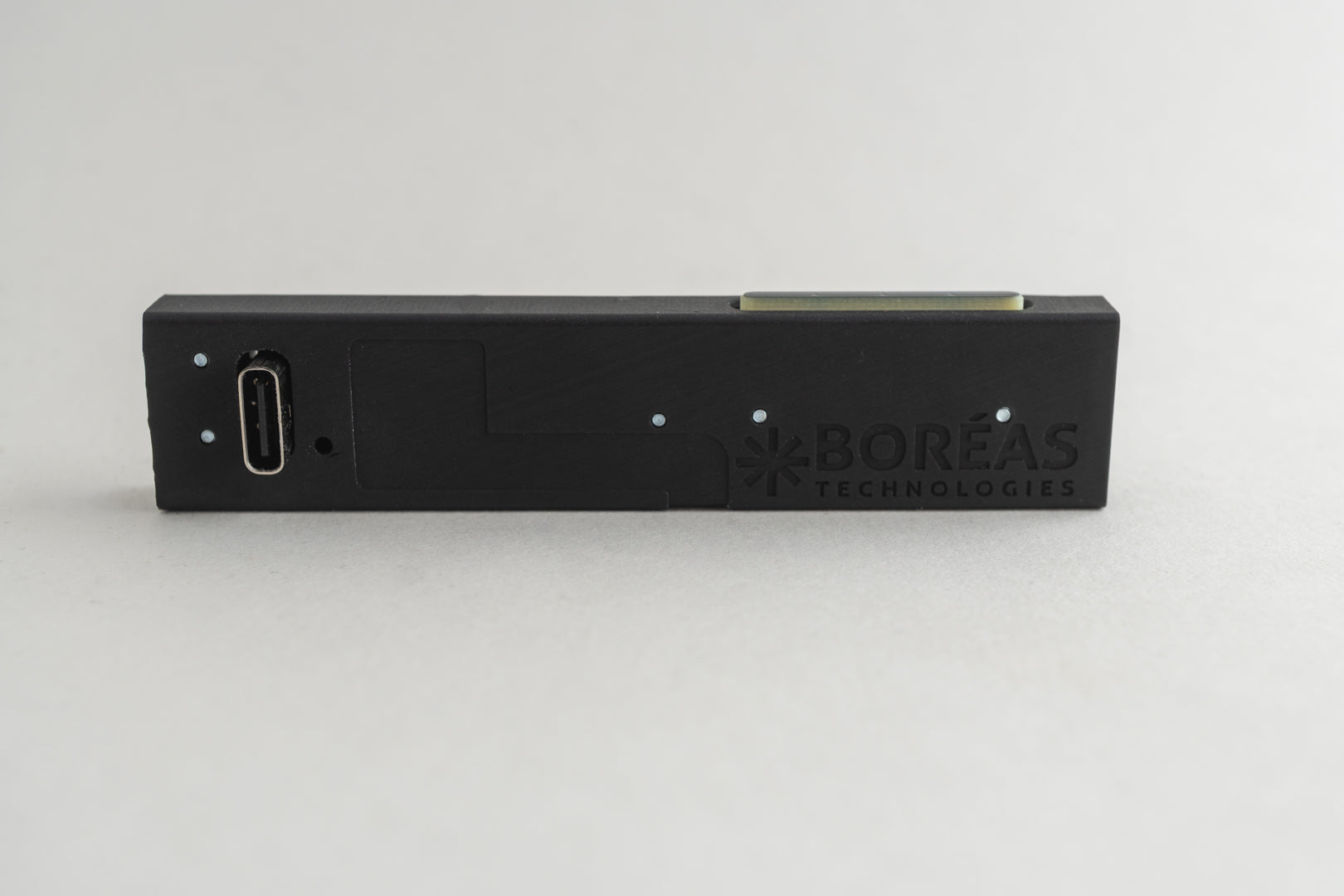

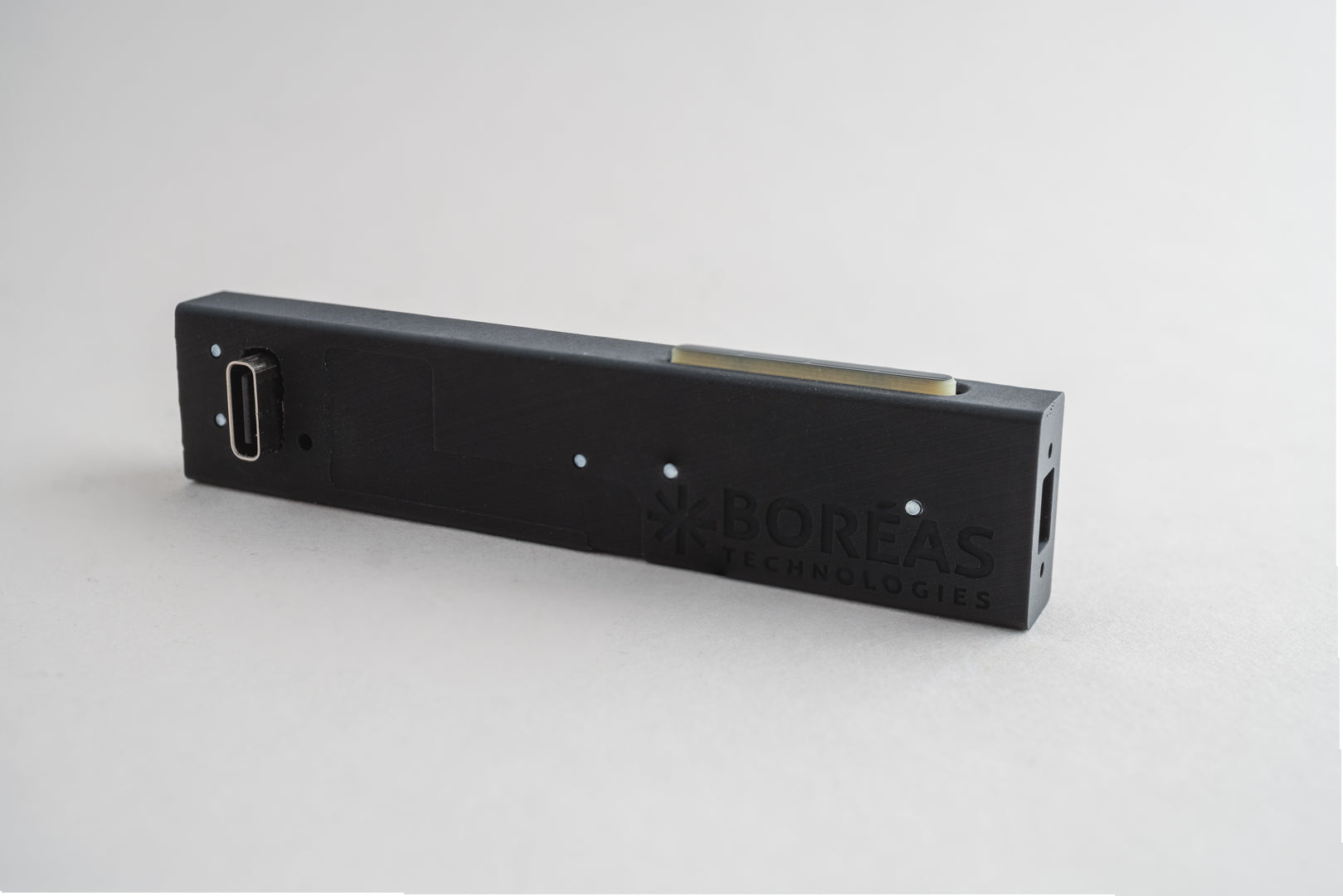

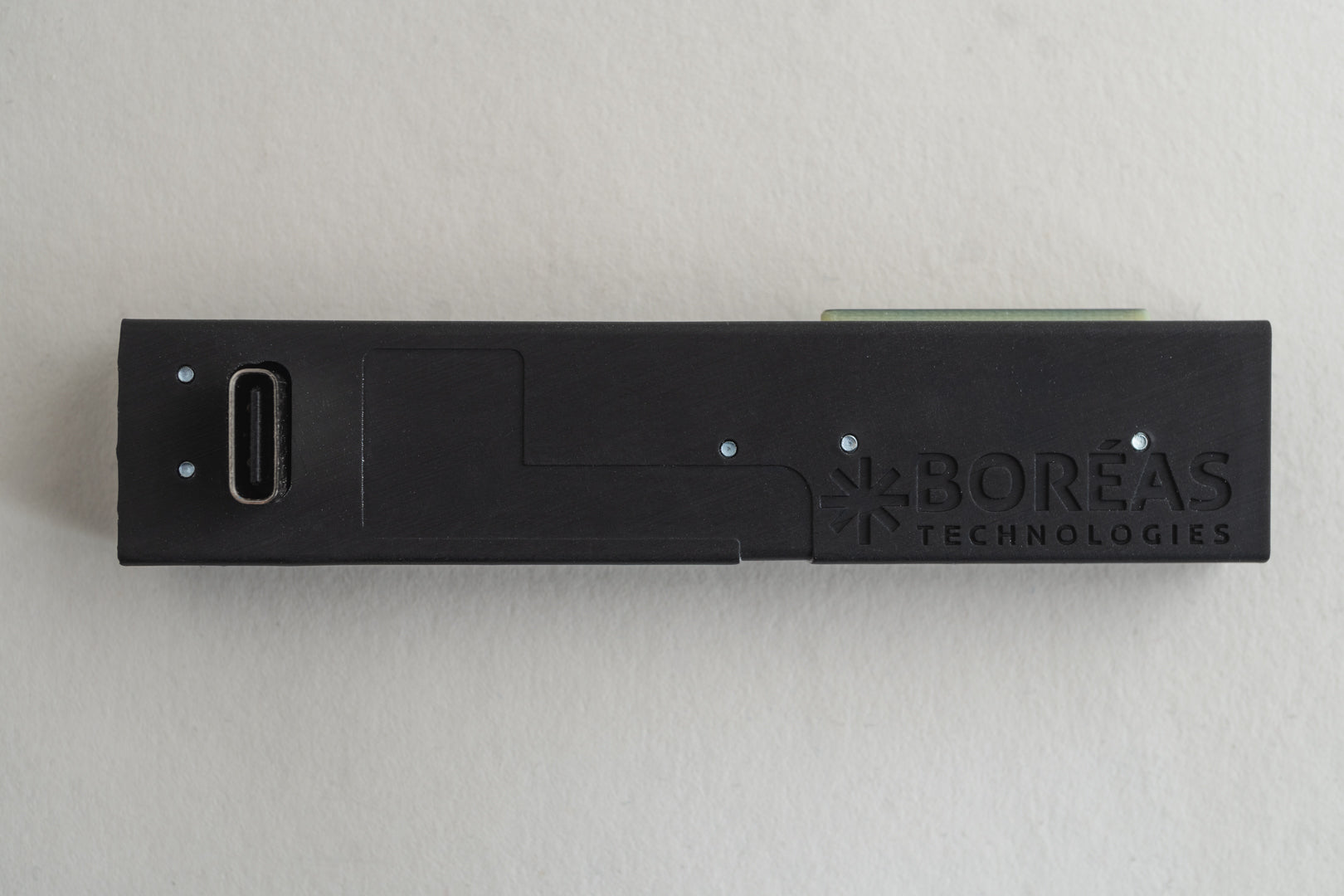

  • Elegant Rectangular Button Design with Professional-Grade Materials.
  • Compact piezo module for ease of assembly.
• Proven Performance with BOS1921-Kit:
  • Proven energy efficiency: Demonstrate to your power budget stakeholders that high-definition haptics won't drain battery life.
  • Illustrates Waveform Synthesis, customization and contextual haptics with advanced slider features through Haptic Studio software.
  • Showcases Full CapDrive™ Driver Capabilities.

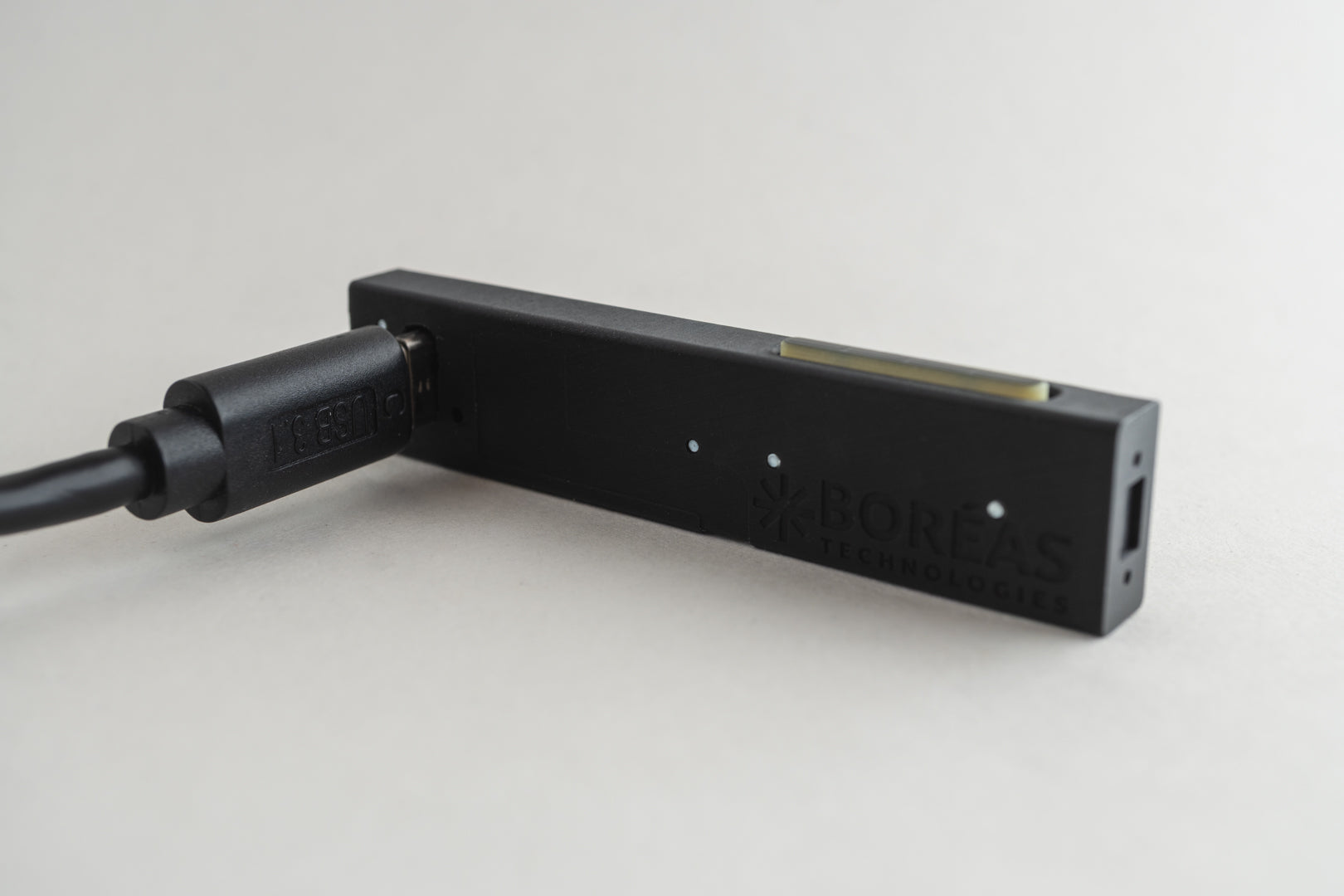

  • Operable in standalone mode, directly powered from supply or battery, for a versatile prototype integration and user demonstration.
